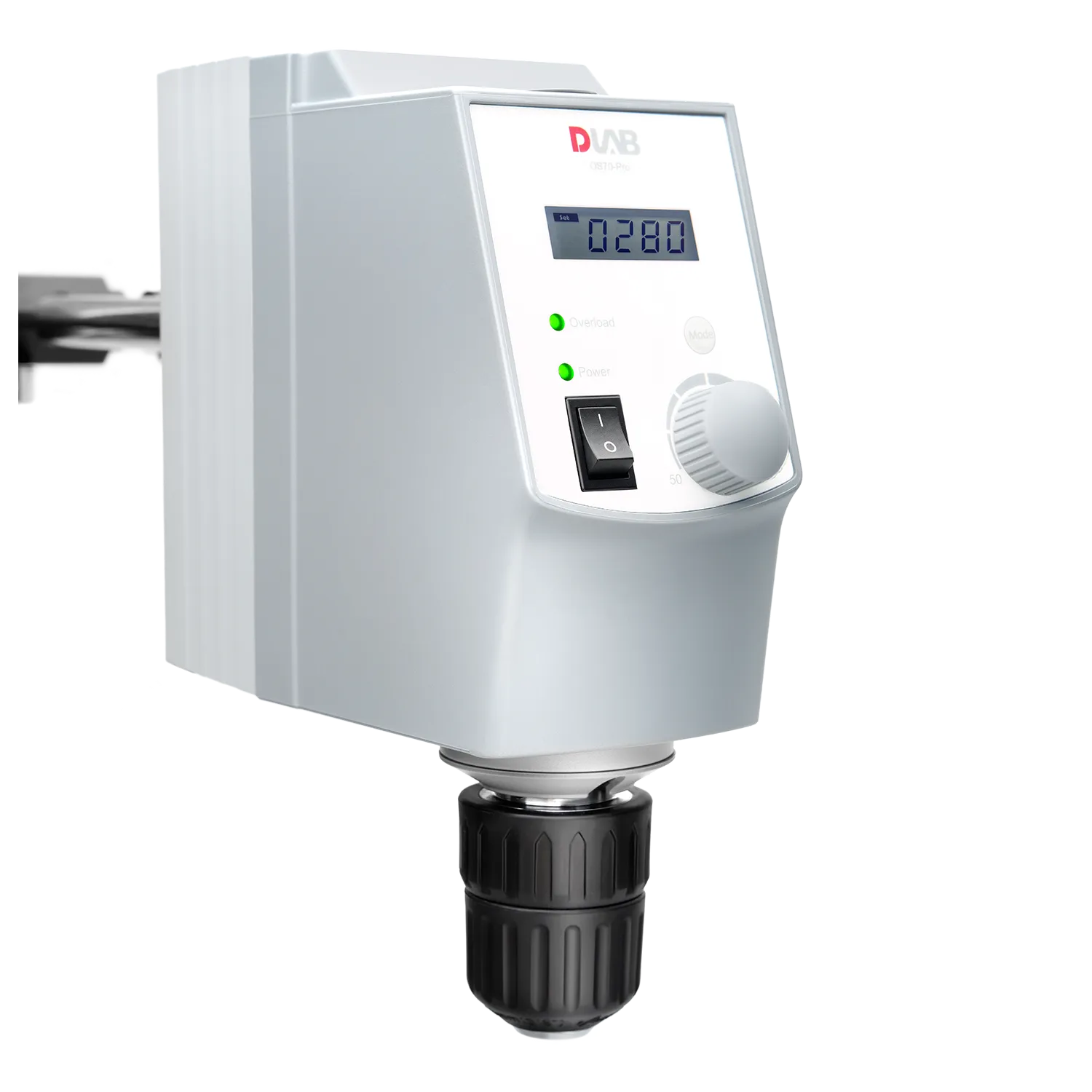

OS70-Pro LCD Digital Overhead Stirrer
- Stirring paddle “top- cross” design, easy to replace the container
- LCD display of set and actual speed, torque and time
- Spillage and overload protection safety circuits
- Brushless DC motor for long life, maintenance free
- Self – locking drill chuck, tools free
- Start/run smoothly, prevent sample splatter or overflow
- Constant speed despite viscosity change of the sample
- Silicone cover protecting drill chuck from erosive vapor
PRODUCT PARAMETERS
Cat.No.: 8033300100
Max. stirring quantity[H2O]: 70L
Speed range: 50-1100rpm
Speed display accuracy: ±10rpm
Time settings range: 0-99h59min
Max. torque: 300N·cm
Viscosity max.: 100000mPa·s
Motor type: Brushless DC motor
Speed display: LCD
Torque display: LCD
Overload protection display: LCD
Data interface: RS232
Chuck clamp range diameter: 0.5-10mm
Protection class: IP21
Motor input power: 180W
Motor output power: 160W
Power: 200W
Voltage, Frequency: 100-240V, 50/60Hz
Dimension[WxHxD]: 83 x 220 x 186mm
Weight: 3.2kg
Permissible ambient temperature: 5-40℃
Permissible ambient humidity: 80% RH
