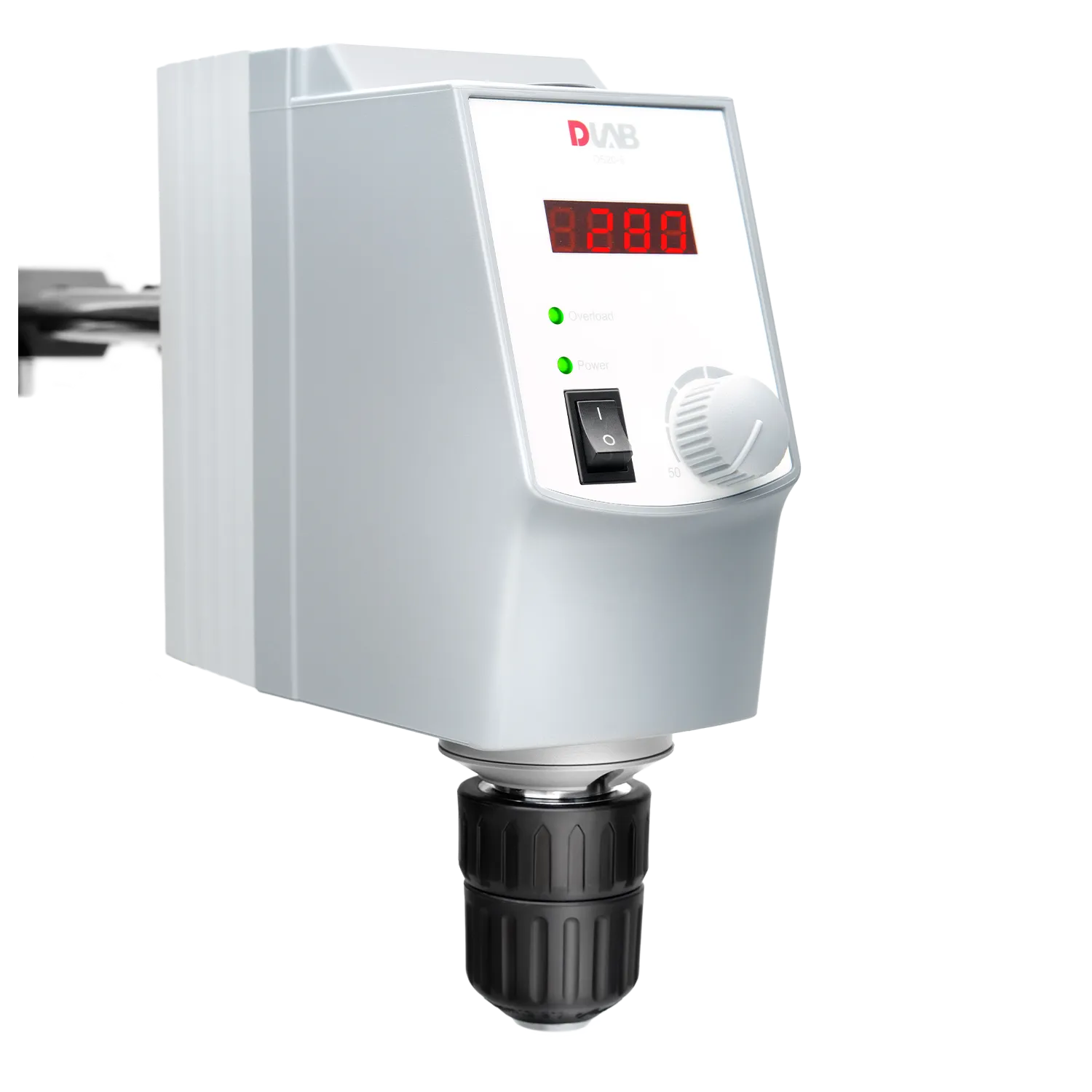

OS20-S LED Overhead Stirrer
- High reliability and outstanding performance
- Wide range of speed from 50 to 2200rpm
- Brushless DC motor for long life, maintenance free and explosion proof
- LED screen for monitoring actual speed
- Safety circuits allow for safe stop function in anti-stall or overload conditions
- Large chuck diameter for many shaft types
PRODUCT PARAMETERS
Cat.No.: 8033100200
Max. stirring quantity[H2O]: 20L
Speed range: 50-2200rpm
Max. torque: 40N·cm
Viscosity max.: 10000mPa·s
Motor type: Brushless DC motor
Speed display:LED
Overload protection display: LED
Chuck clamp range diameter: 0.5-10mm
Protection class: IP21
Motor input power: 60W
Motor output power: 50W
Power: 70W
Voltage, Frequency: 100-240V, 50/60Hz
Dimension[WxHxD]: 83 x 220 x 186mm
Weight: 2.8kg
Permissible ambient temperature: 5-40℃
Permissible ambient humidity: 80% RH
