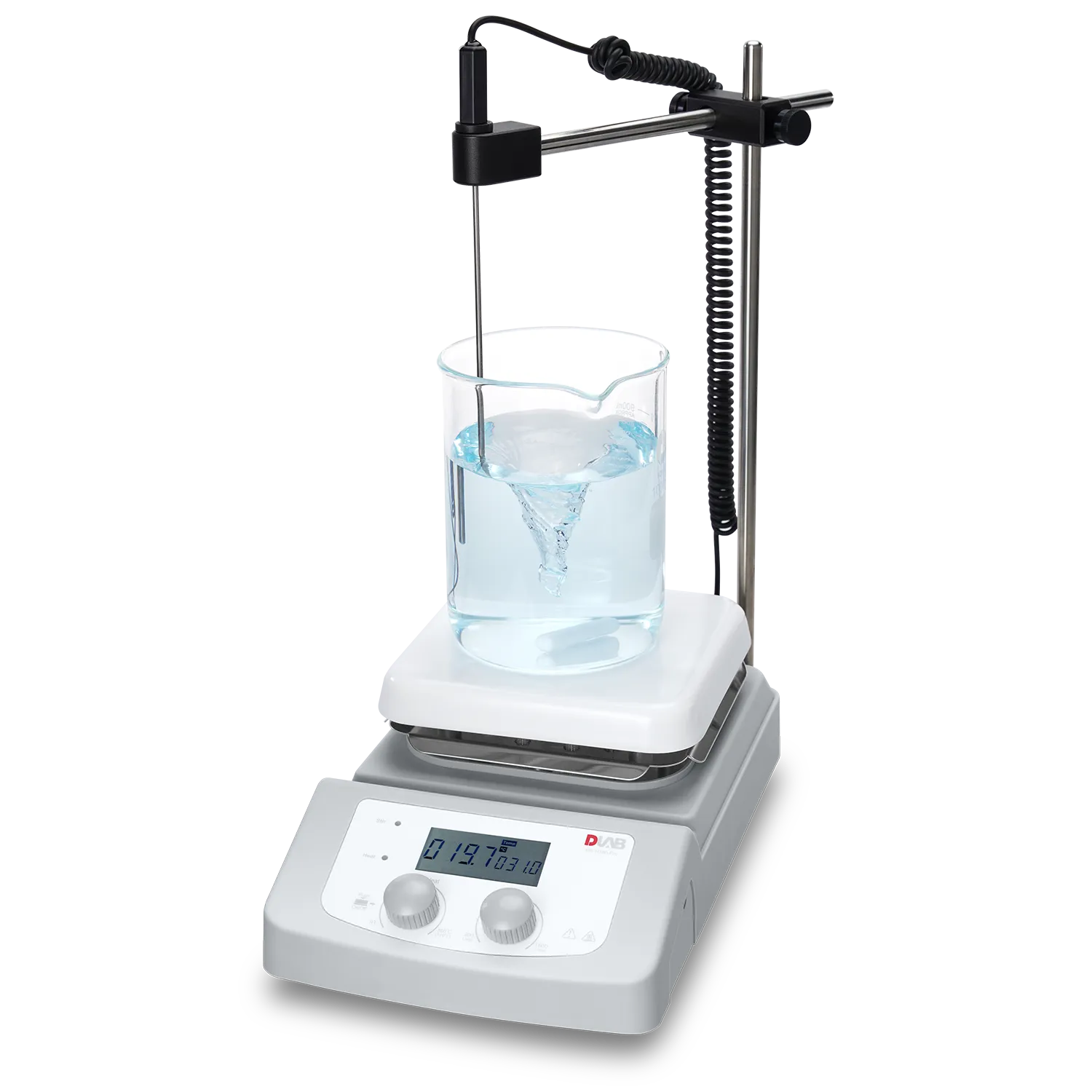

MS-H380-Pro LCD Digital Magnetic Hotplate Stirrer
- Maximum heating temperature is 380°C
- High resolution LCD displays actual temperature and speed
- Brushless DC motor is maintenance free
- Aluminum ceramIc coating work plate, allowing immediate heat transfer
- External temperature control is possible with temperature sensor PT1000
- Digital speed control with maximum speed up to 1500rpm
- Maximum stirring quantity of H2O at 5L
PRODUCT PARAMETERS
Cat.No.: 8030261115
Work plate Dimension: 140x140mm
Work plate material: Aluminum cover with ceramic coating
Max. stirring quantity [H2O]: 5L
Speed range: 200-1500rpm
Speed display: LCD
Temperature display: LCD
Heating temperature range: Room Temp.-380℃
Temperature control accuracy: ±1℃(<100℃) ±1%(>100℃)
Temperature display accuracy: ±0.1℃
External temperature sensor: PT1000 ( accuracy±0.2℃ )
Overheating temperature protection: 420℃
Motor type: Brushless DC motor
Stirring positions: 1
Max. magnetic bar length: 50mm
Protection class: IP21
Motor rating input: 2.4W
Motor rating output: 1.8W
Power: 510W
Heating output: 500W
Voltage, Frequency: 100-120V/200-240V，50/60Hz
Dimension [WxDxH]: 320x180x108mm
Weight: 2.2kg
Permissible ambient temperature: 5-40℃
Permissible ambient humidity: 80% RH
